Engine Controls - Revised DTC 36 (DIS) Chart

Number: 93-203-6E
Section: 6E
Date: MAY 1993
Corporate Bulletin No.: 316505
ASE No.: A1, A8

Subject:
ENHANCED DIAGNOSTIC TROUBLE CODE (DTC) 36 DIAGNOSTIC CHART AND FACING PAGE

Model and Year:
1993 CAMARO

SUBJECT UPDATE

This bulletin serves to revise the facing page and chart for Diagnostic Trouble Code (DTC) 36 in Section 6E3 "Driveability and Emissions" in the 1993 "F" carline service manual with 3.4L (VIN S) engine.

These replacement pages clarify 24X crankshaft position sensor features and diagnosis.

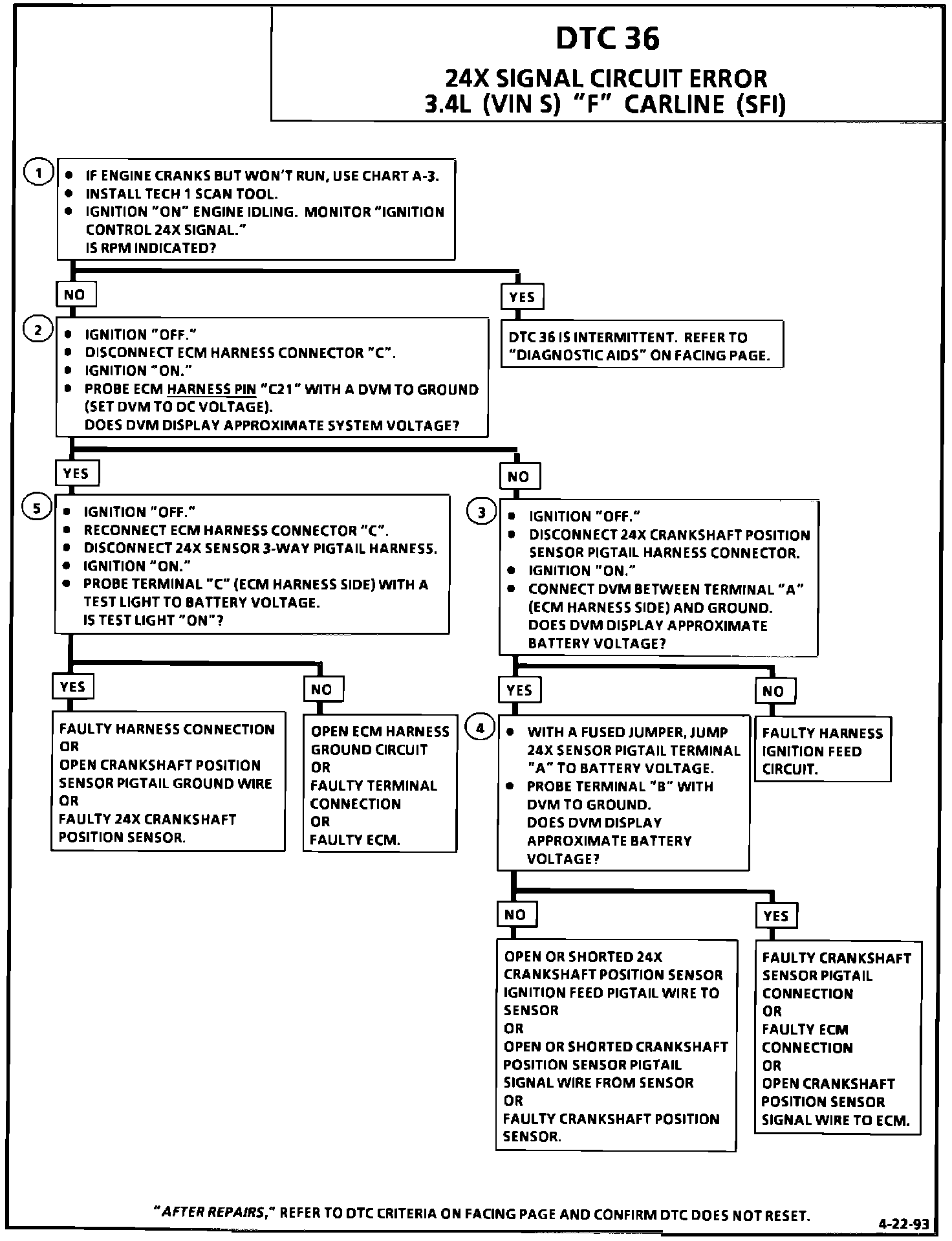

Manual Update Page, 6E3A60

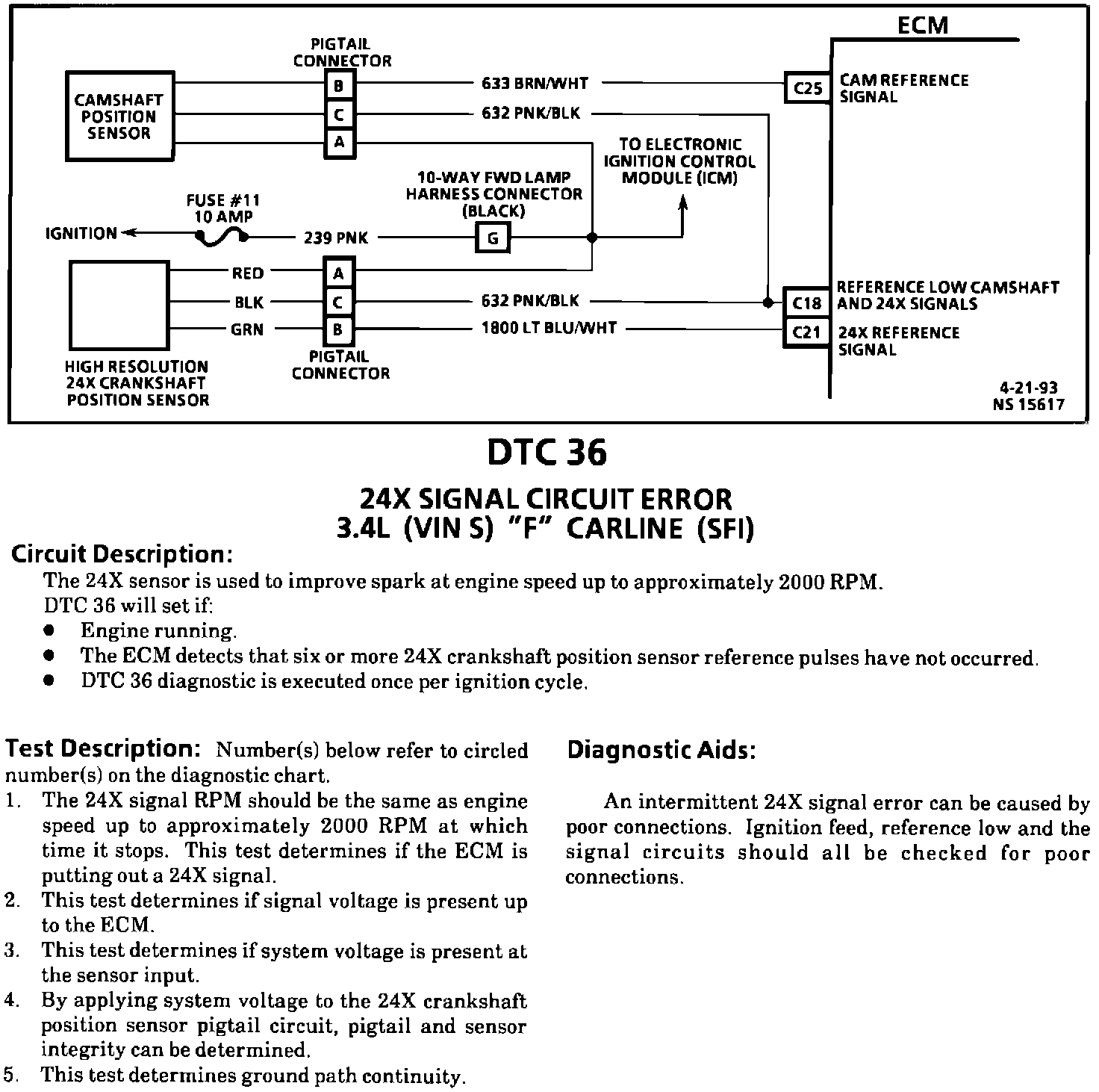

Manual Update Page, 6E3A61
