Grille: Service and Repair

Grille Replacement

Removal Procedure




1. Open the hood.

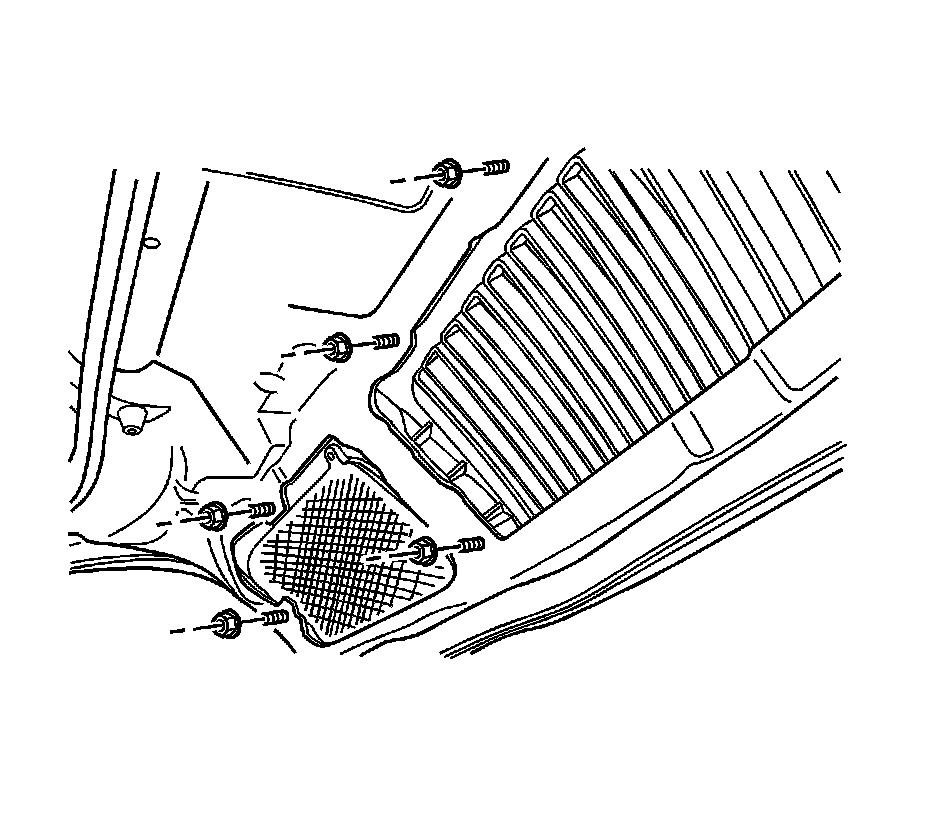

2. Remove the nuts and the radiator grille.

Installation Procedure





Notice: Refer to Fastener Notice Fastener Notice in Cautions and Notices.

1. Install the radiator grille with the nuts

Tighten the radiator grille nuts to 4 Nm (35 lb in).

2. Close the hood.
