Flex Plate

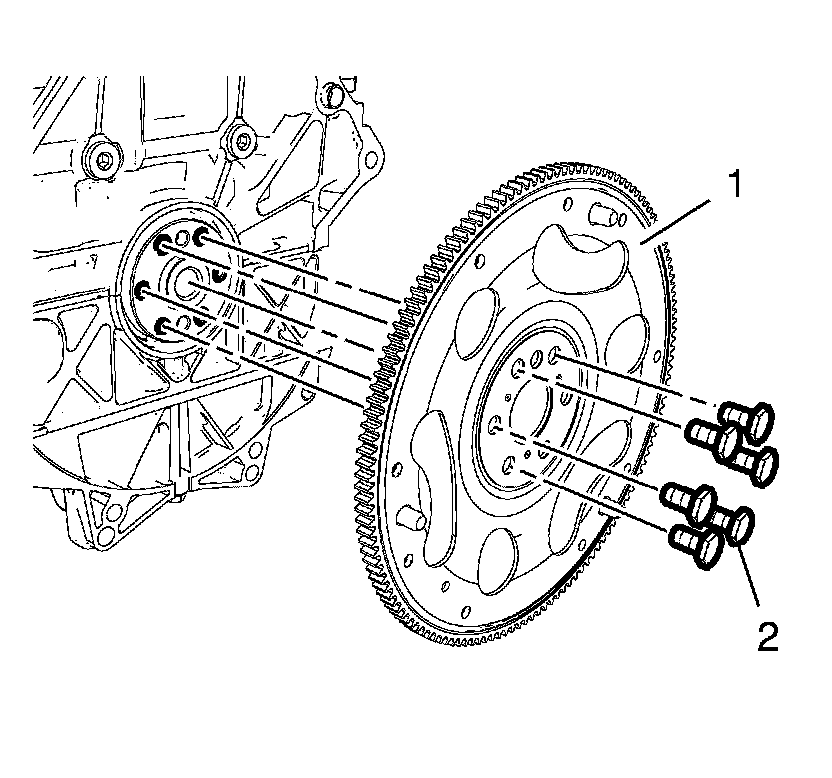

Install the 6 automatic flex plate (1) and 6 NEW automatic transmission flex plate bolts (2) handtighten.

Tighten the automatic transmission flex plate bolts a first pass to 53 Nm (39 lb ft)

Tighten the automatic transmission flex plate bolts a final pass to an additional 25 degrees.
