Axle Shaft

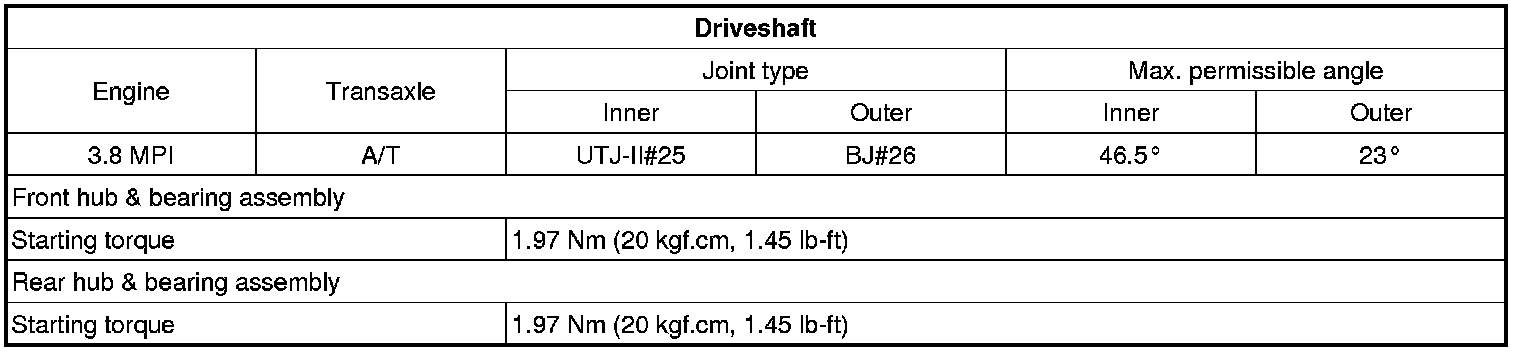

Specifications





NOTE:
Inner: On transaxle side
Outer : On tire side

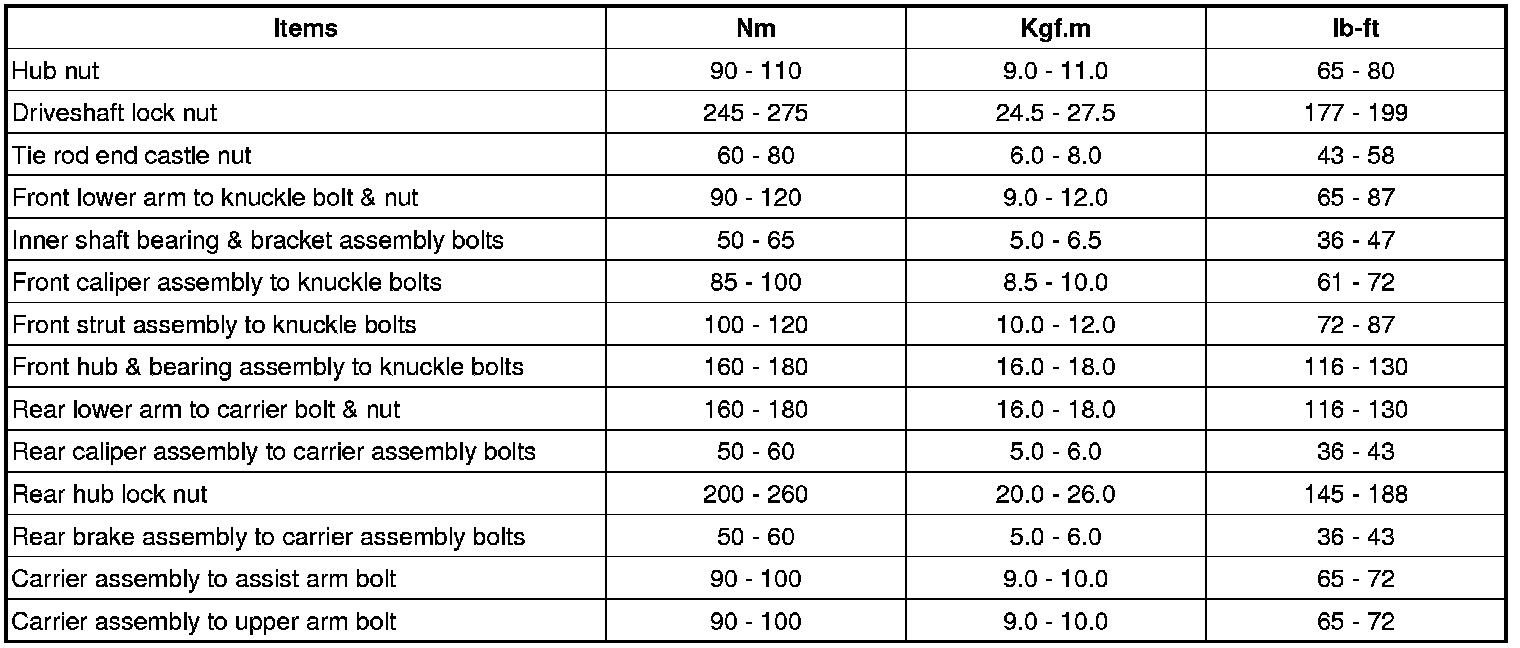

Tightening Torque
