Relay Box (Passenger Compartment)





Components

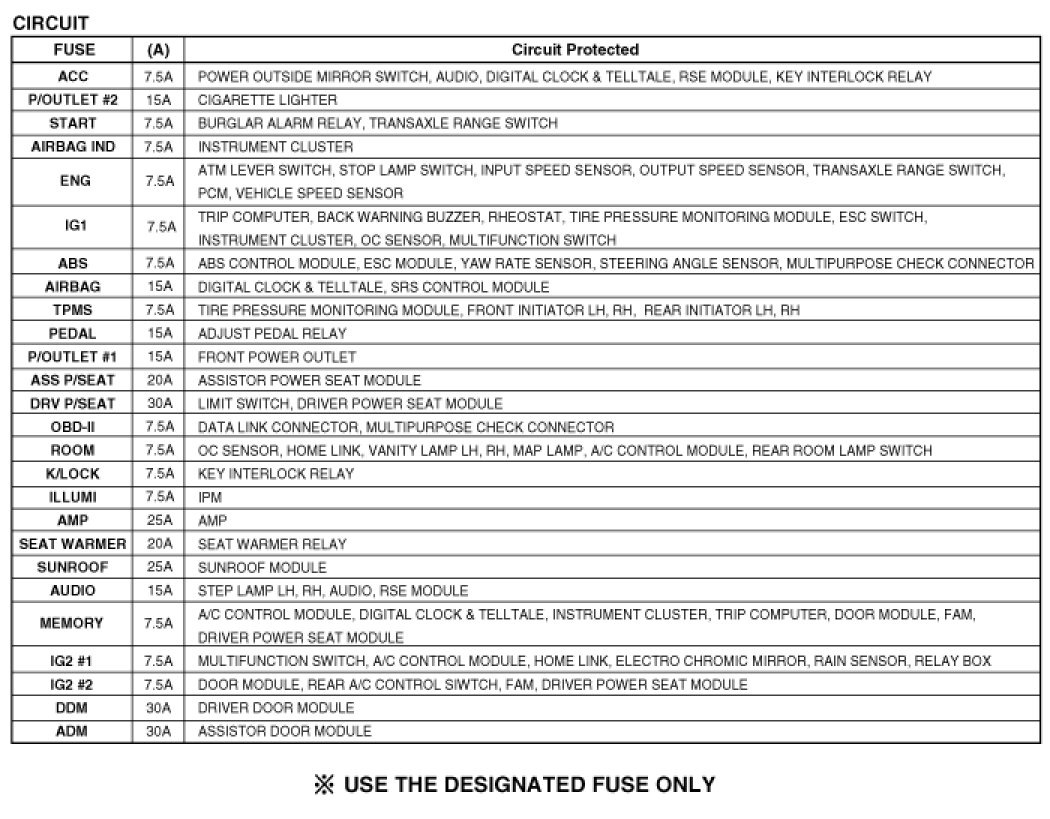

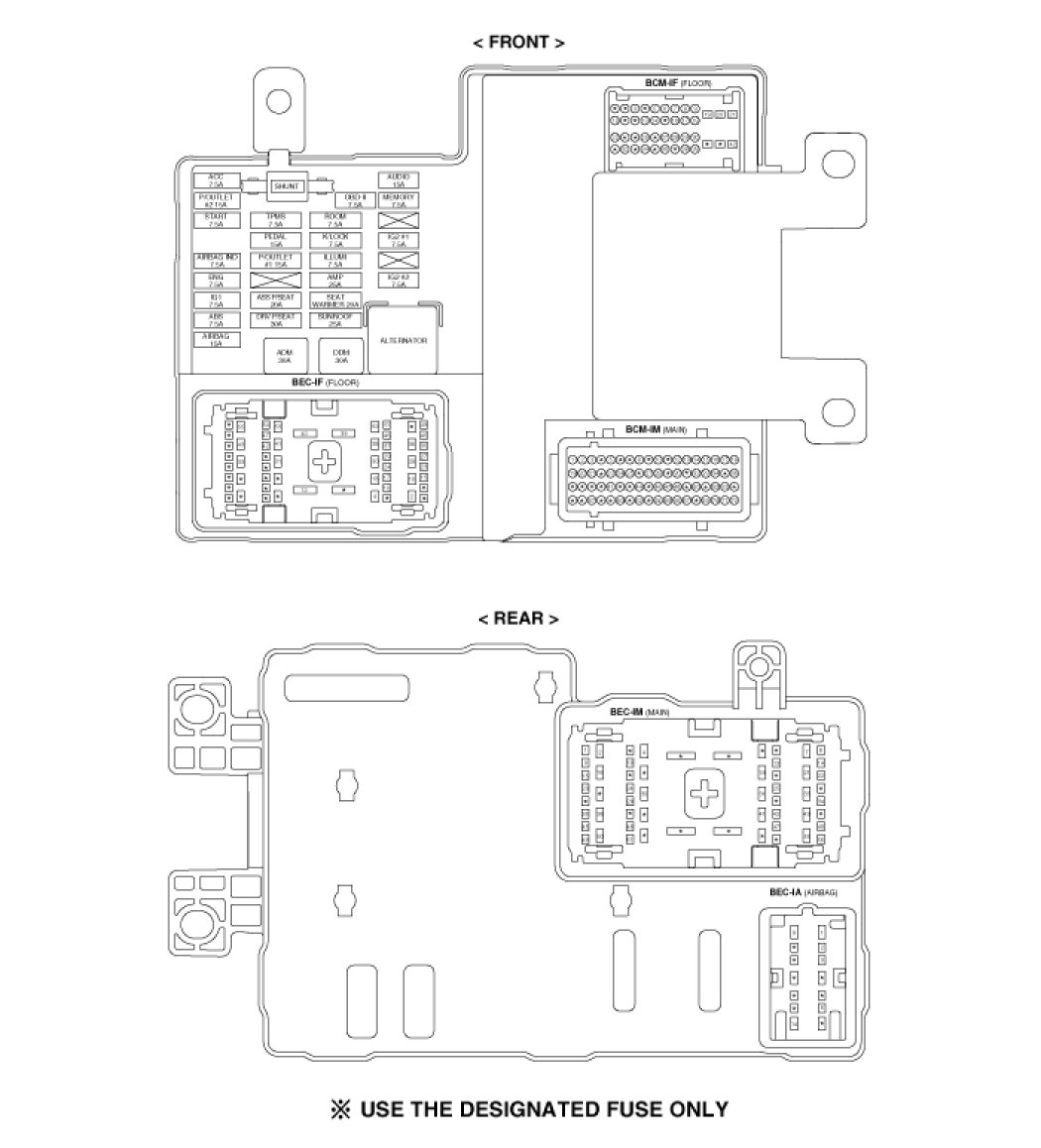

IPM (Instrument Panel Module)

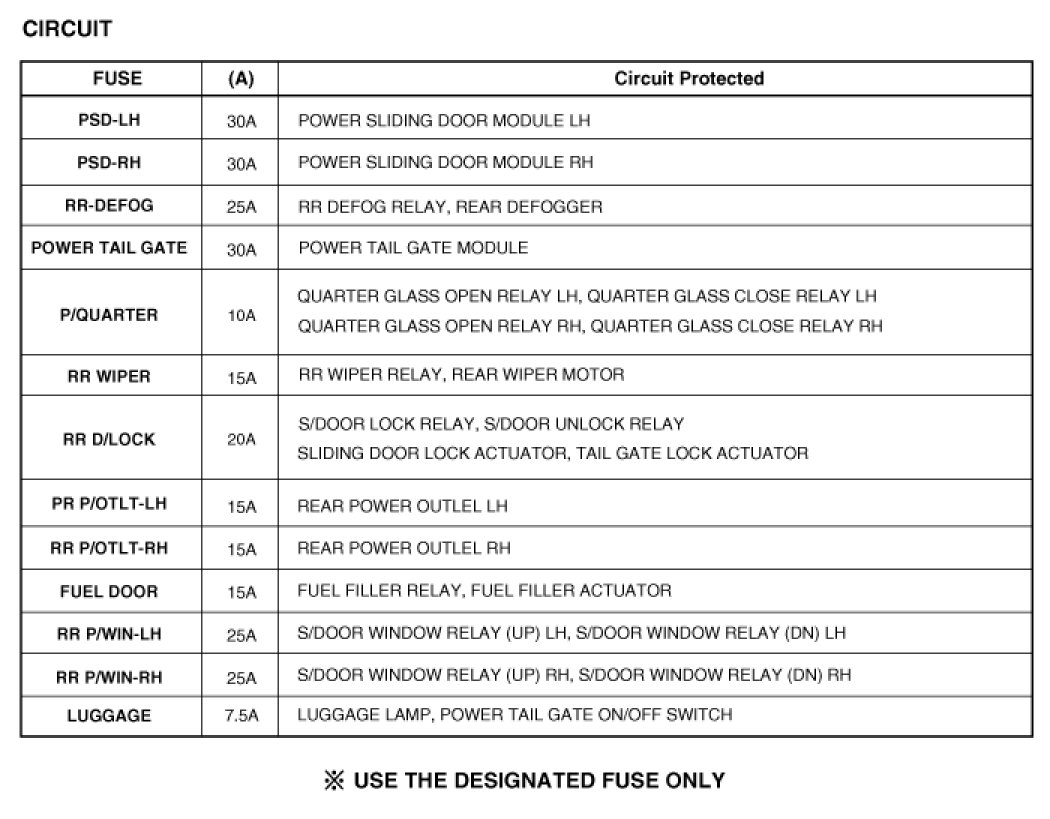

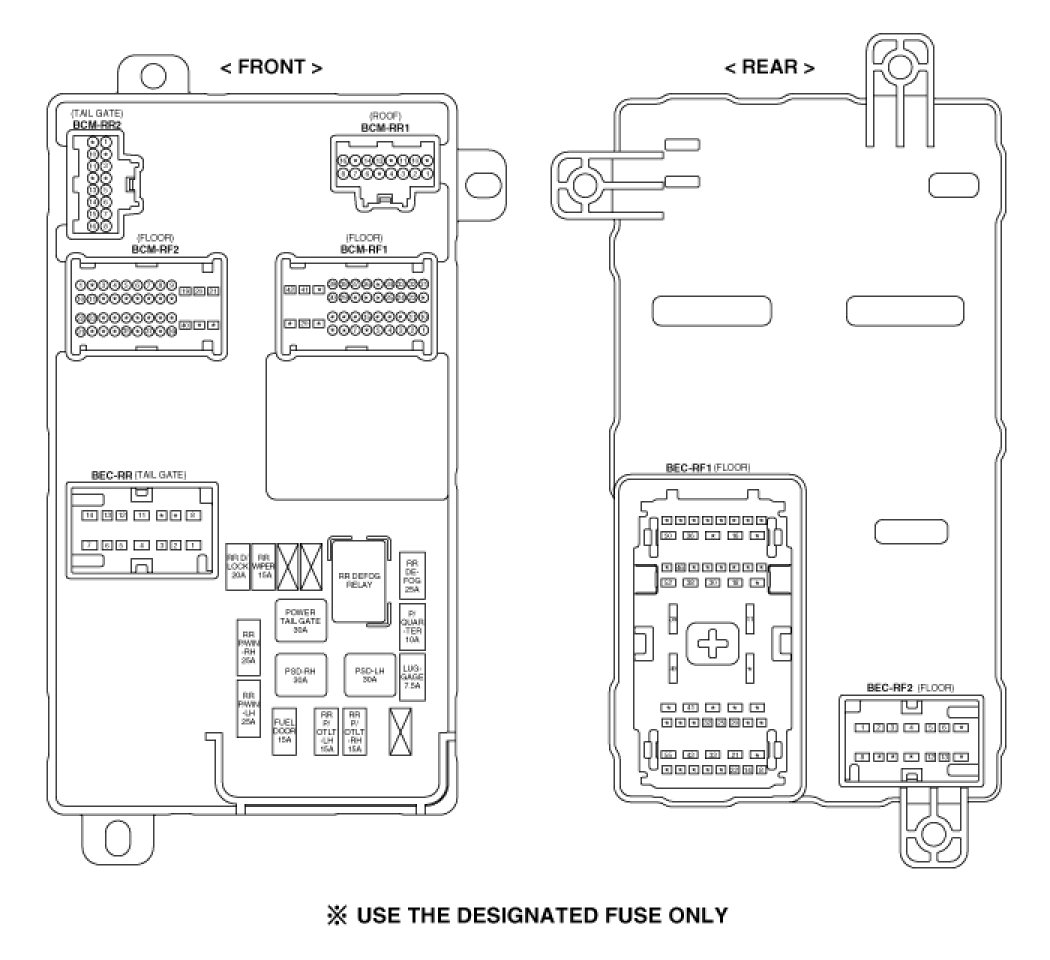

RAM (Rear Area Module)
