Home >> Kia >> 2007 >> Rio L4-1.6L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Clutch, M/T >> Clutch Pedal Assembly

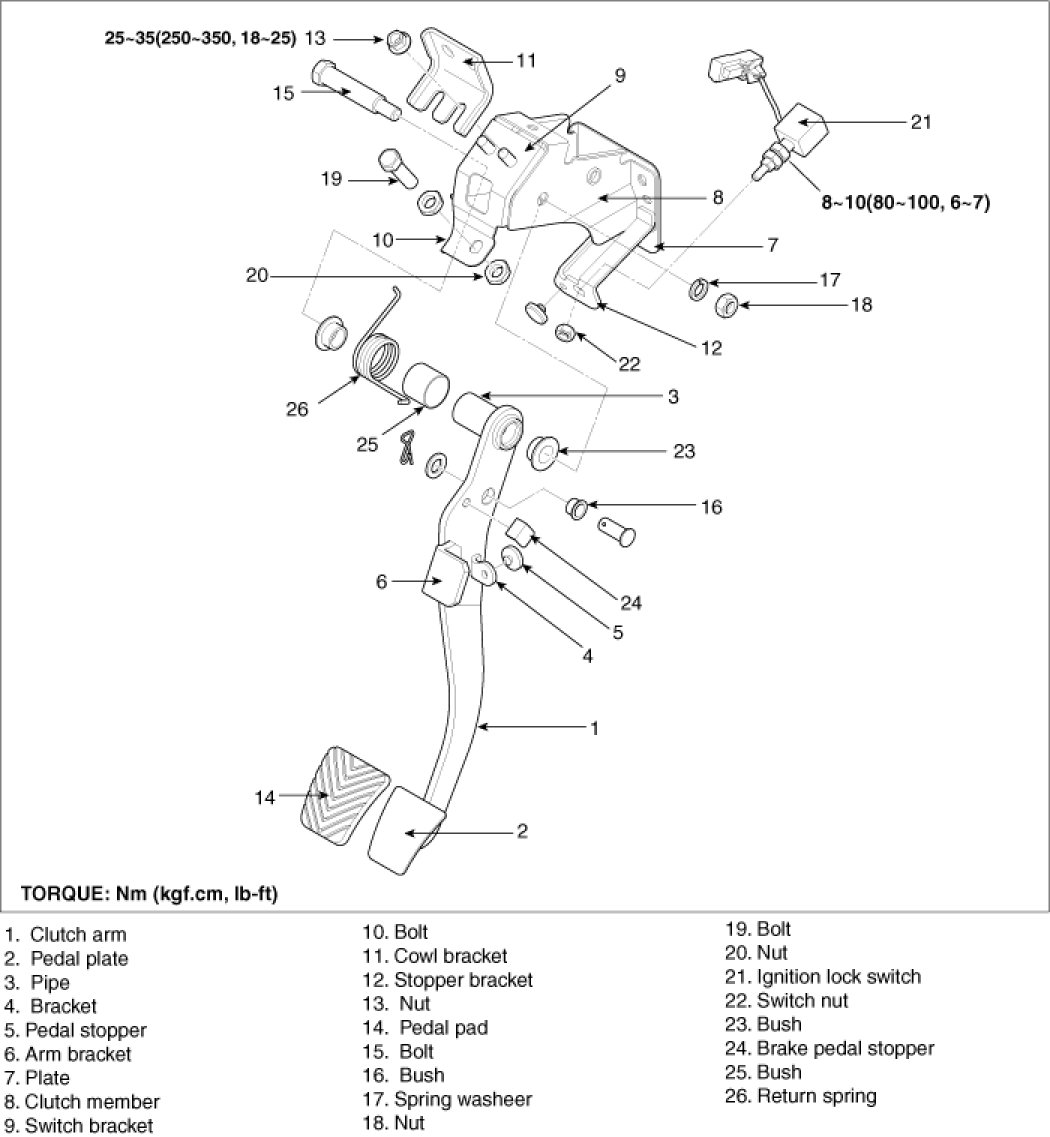

Clutch Pedal Assembly




COMPONENTS (1)
