Audio System - Subwoofer Level Control Loose
Bulletin: P93/86-005Section: Product
Date: 3/11/93
Model: Range Rover
Applicable to: USA/CND
Subject:
1992 a/d/s/(R) AUDIO SYSTEM - SUBWOOFER LEVEL CONTROL
The subwoofer level control for the 1992 a/d/s/(R) system is retained in the auxiliary switch panel with plastic tangs. In cases where the tangs fail to secure the control, install a spring steel retention clip following the instructions in this Service Bulletin. This modification should only be performed in cases where the tangs will no longer retain the control.
WORK PROCEDURE
^ Remove the level control unit from the recess in the auxiliary switch panel and unplug it from the audio harness.

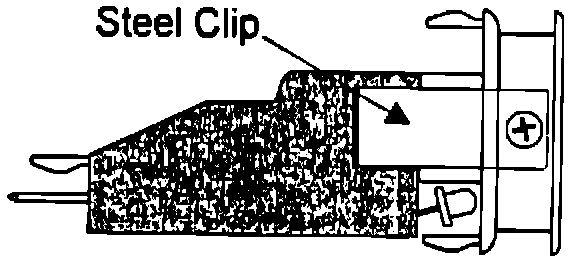

^ Remove the phillips head screw on the left side of the level control (as viewed from the front of the control) - see Illustration.
^ Sandwich the new retention clip between the plastic housing and metal switch bridge and replace the screw. Make sure that the tab on the retention clip faces outward.
^ Install the wiring connector and refit the control into the auxiliary switch panel making sure that the retention clip locks the control in place.
PARTS INFORMATION
Level control retention clips are available through the LRNA Parts System under Part Number RTC7772.
WARRANTY INFORMATION
Submit warranty claims as follows (1992 models with premium audio system only):
Service Type: WW
Repair Code: 7Z3C
Labor Operation: 999987 Modify control .20 hrs.
