Operation CHARM
: Car repair manuals for everyone.
Home
>>
Land Rover
>>
2009
>>
LR2 (LF) L6-3.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Seat Switch
>>
Switch Pack-Seat-Driver
Switch Pack-Seat-Driver

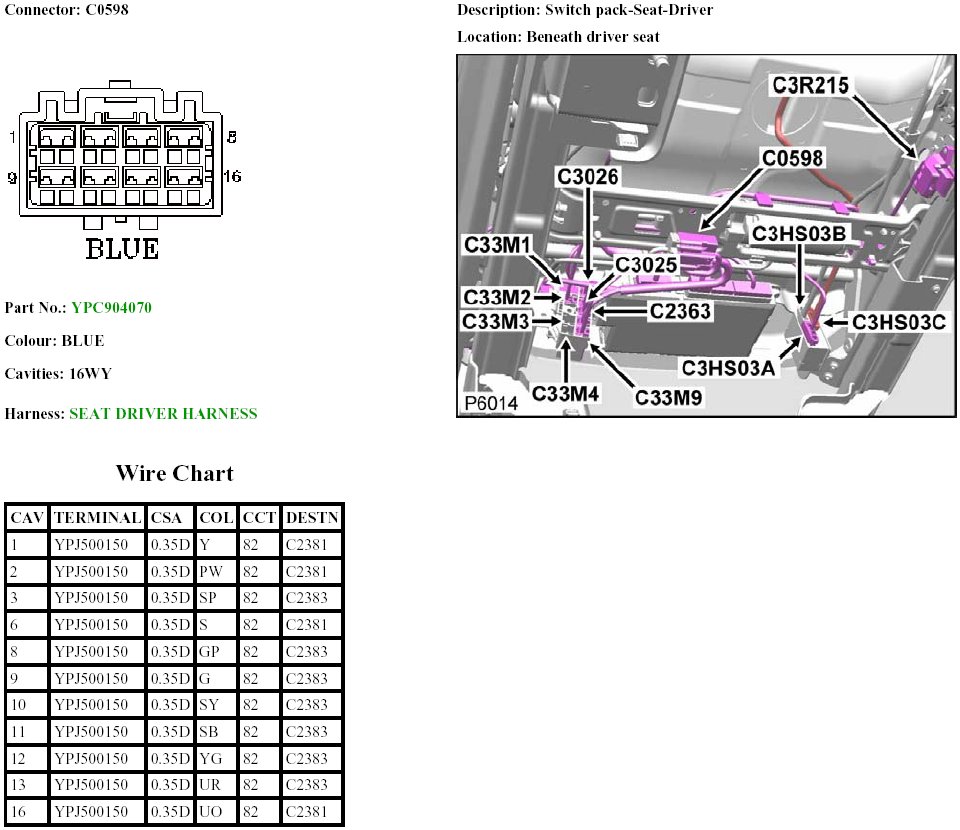

C0598:
