Mazda Truck
>>
2011
>>
CX-9 AWD V6-3.7L
>>
Repair and Diagnosis
>>
Specifications
>>

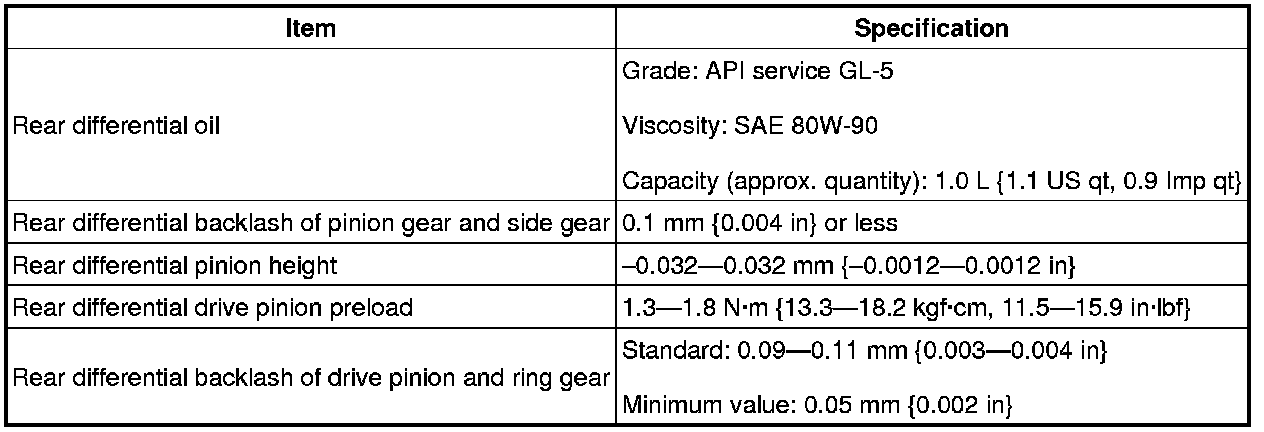

Mechanical Specifications
>>
Differential Assembly
Differential Assembly
Differential
REAR

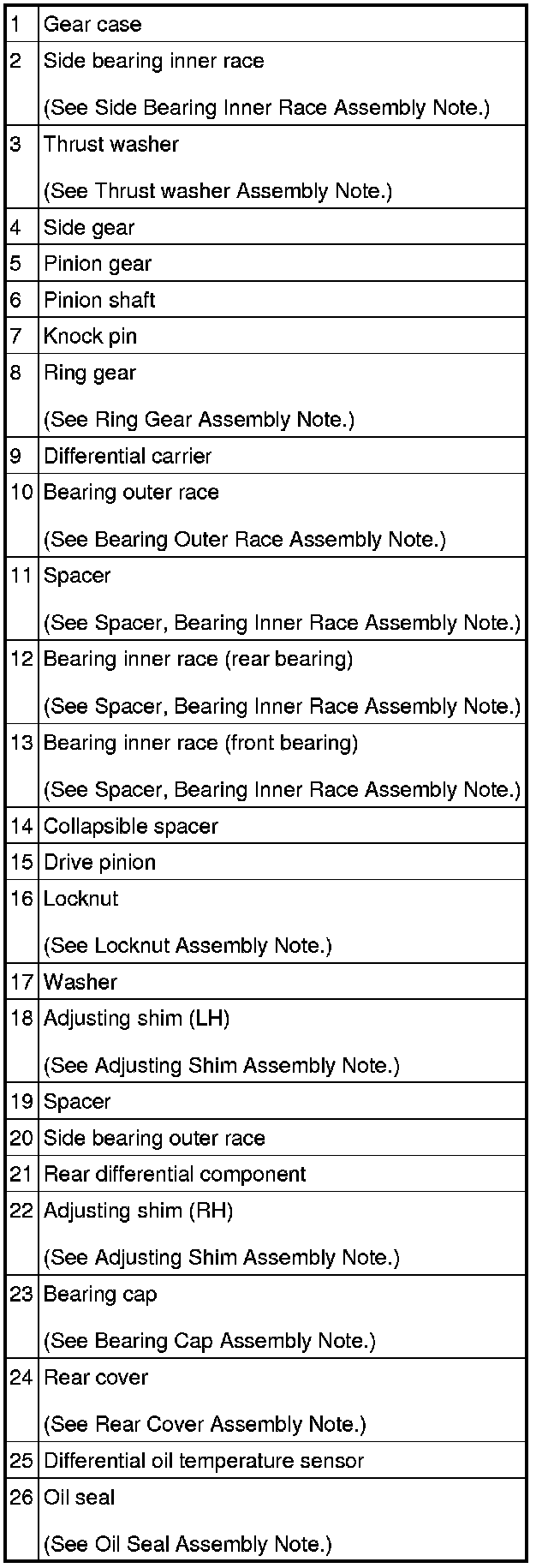

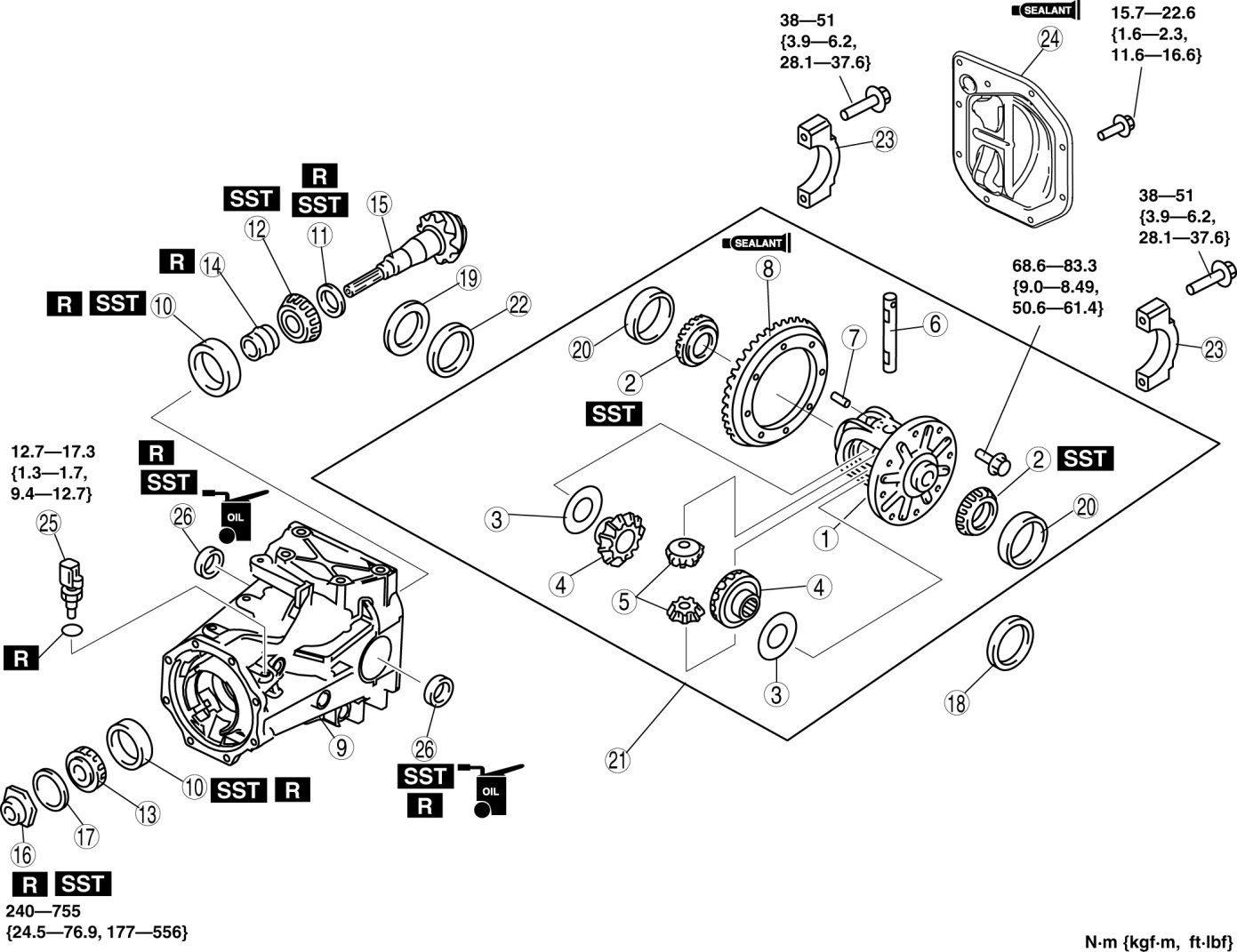

DIFFERENTIAL ASSEMBLY
