Home >> Mazda >> 2004 >> 3 L4-2.3L >> Repair and Diagnosis >> Diagrams >> Connector Views >> C-02 - C-06

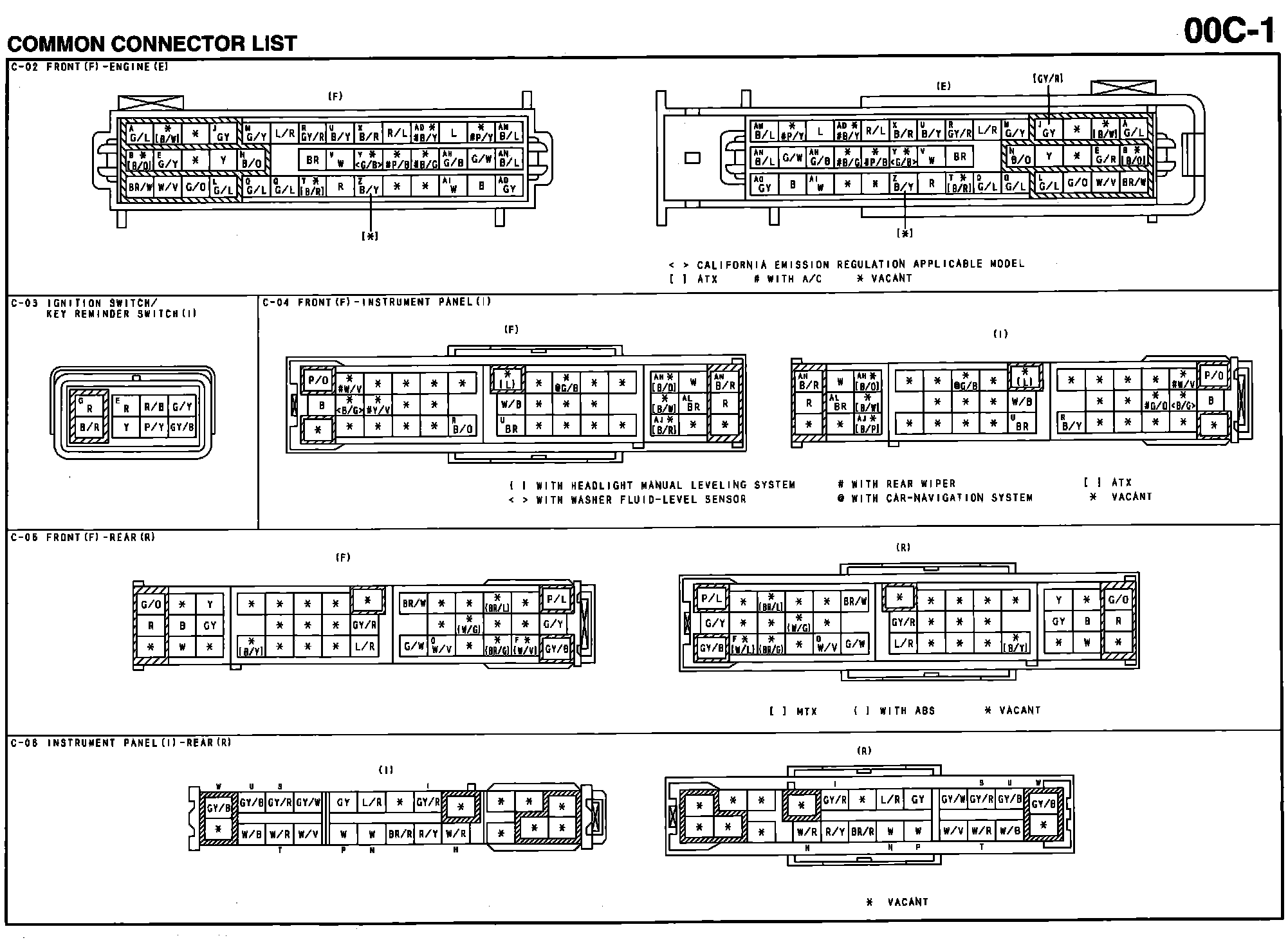

C-02 - C-06

C-02 - C-06:
