Home >> Pontiac >> 1986 >> Firebird V8-305 5.0L >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Powertrain Controls >> With Computer Command Control (C-3) >> Spark Control >> VIN H

VIN H

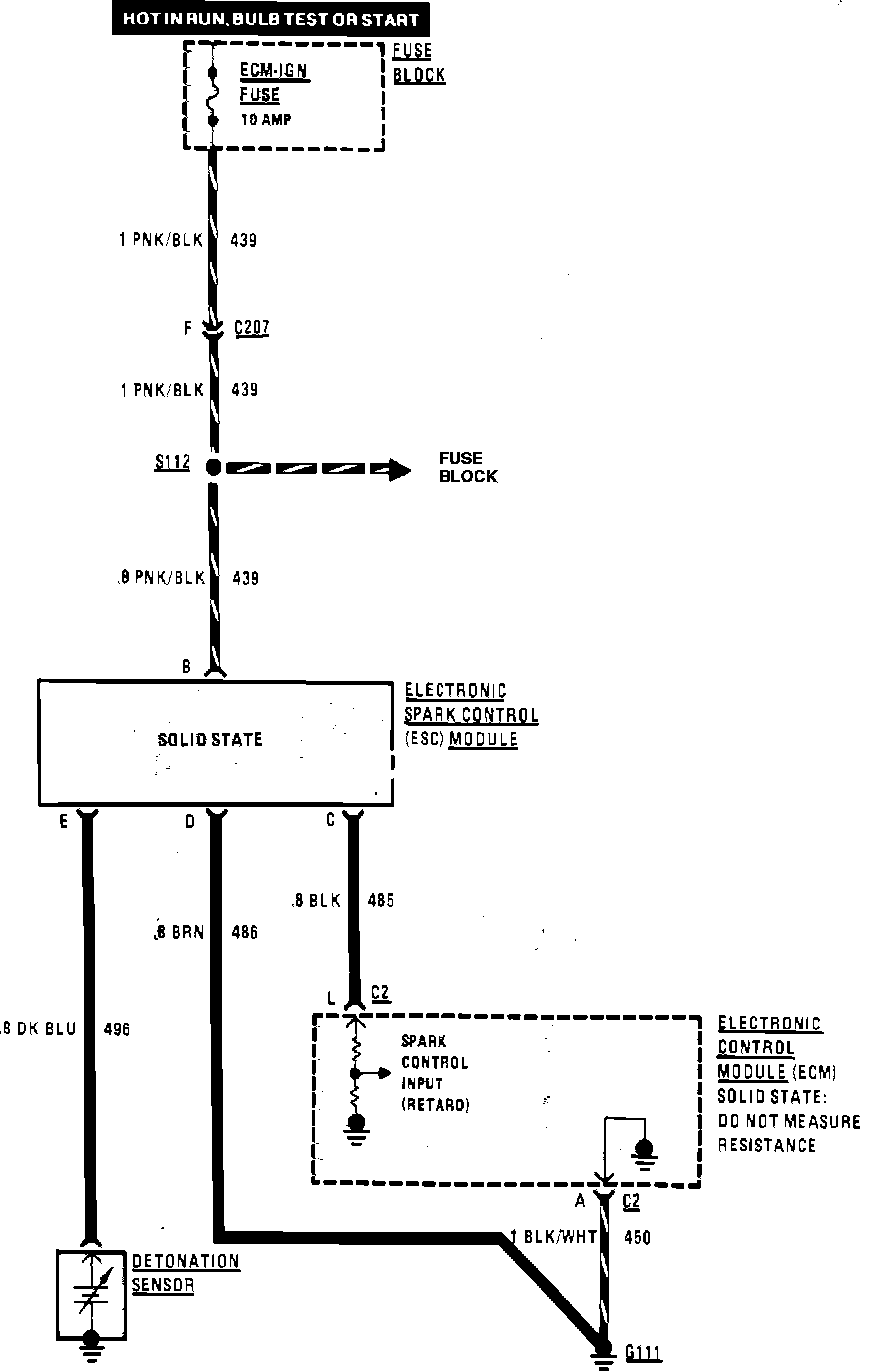

Computer Command Control Wiring Circuit (Spark Control) (VIN H):
