Air Conditioning Switch
>>
HVAC Temperature Switch

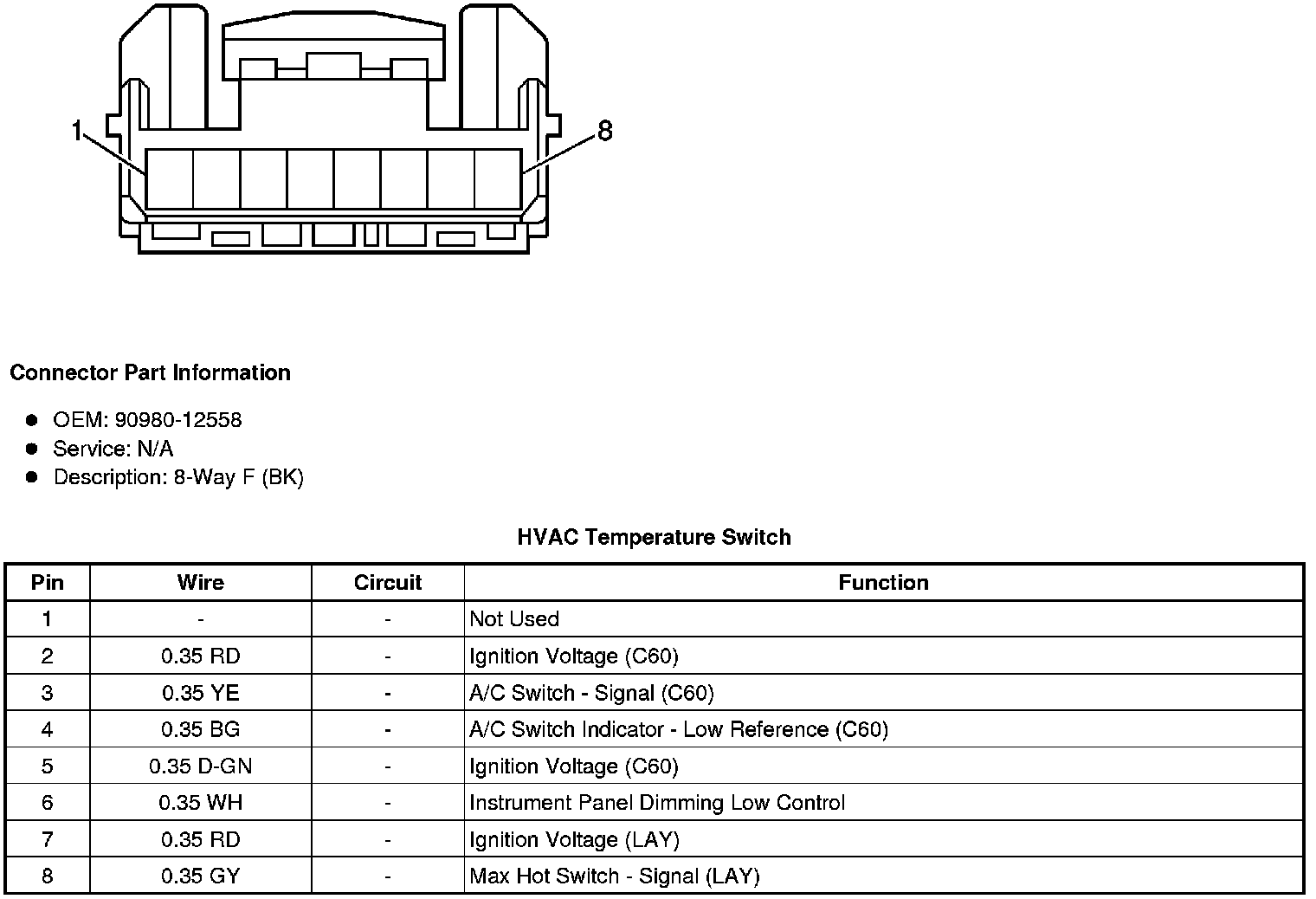

HVAC Temperature Switch
Component Connector End Views
HVAC Temperature Switch
