EVAP System Overview

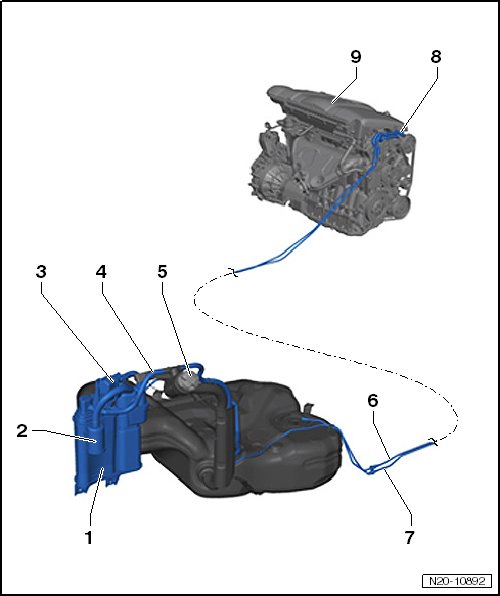

EVAP System Overview






1 Evaporative Emission (EVAP) Canister

• Installed location: In the right rear wheel housing, under the liner.

• Removing and installing, refer to => [ EVAP Canister ] Service and Repair.

2 Air Filter

• For the leak detection pump.

3 Leak Detection Pump (V144)

• Installed location: In the right rear wheel housing, under the liner.

• Checking, refer to the vehicle diagnostic tester.

• Removing and installing, refer to => [ Leak Detection Pump V144 ] Service and Repair.

4 Ventilation Line

• From the fuel filler tube to the EVAP canister.

5 Filler Tube

6 Fuel Supply Line

• Black

7 Ventilation Line

• White

8 EVAP Canister Purge Regulator Valve 1 (N80)

• Checking, refer to the vehicle diagnostic tester.

9 Throttle Valve Control Module (J338)
