2.5L Automatic

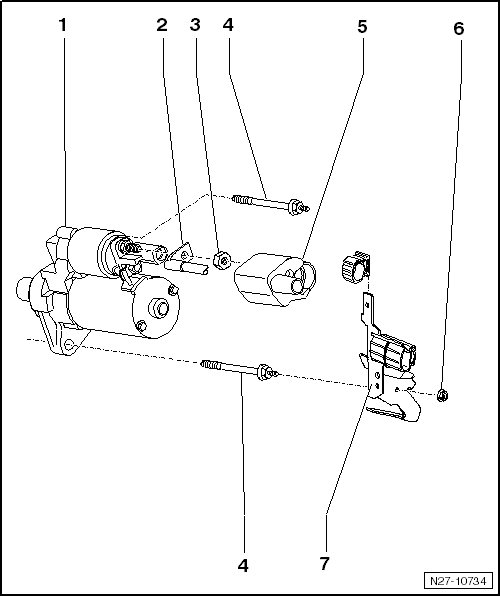

Starter Overview

Always follow the instructions in the Repair Information exactly when disconnecting and connecting the battery. Refer to => [ Battery, Disconnecting and Connecting ] Service and Repair.






1 Starter (B)

• Checking, refer to => [ Starter (B), Checking ] Testing and Inspection.

• Removing and installing, refer to => [ Starter ] Service and Repair.

2 Connection, B+ Wire To Starter

3 M8 Nut, B+ Wire To Starter

• 20 Nm

4 Starter Bolt

• M12 = 80 Nm

• M10 = 40 Nm

5 Cap

6 Wire Bracket M8 Nut

• 20 Nm

7 Wiring Bracket
